___ TRANSFER PRINT

TRANSFER PRINT
Technological advantages Technological limitations ​​Phases of the technological process
  • large decoration surface
  • possibility of personalization
  • Dishwasher-resistant print
  • the minimum thickness of the line is 0.2 mm, of the reverse - 0.4 mm
  • the minimum size of the text is 7 points, the reverse – 10 points.
  • preparing the project for printing
  • the process of printing on paper
  • manual transfer onto the product
  • the firing process



Additional decorations available

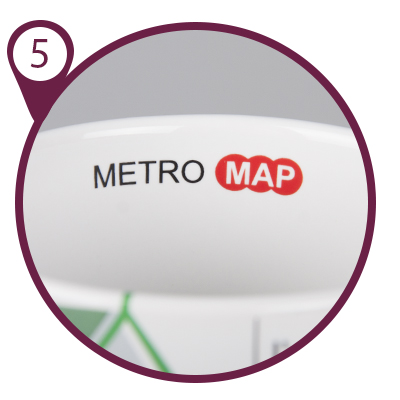

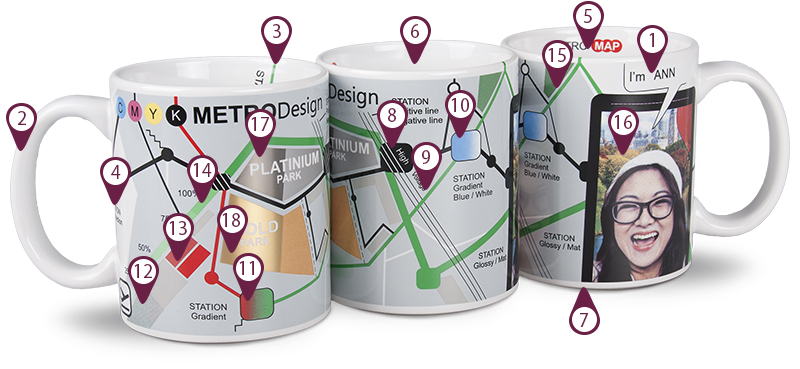

METRO

podgląd_img podgląd_img podgląd_img podgląd_img

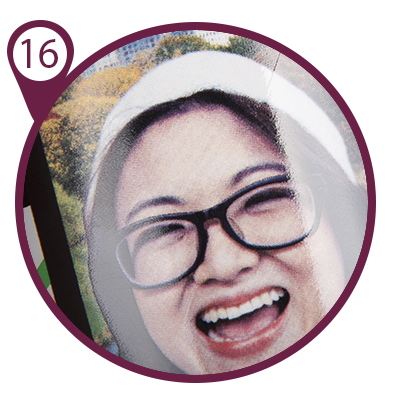

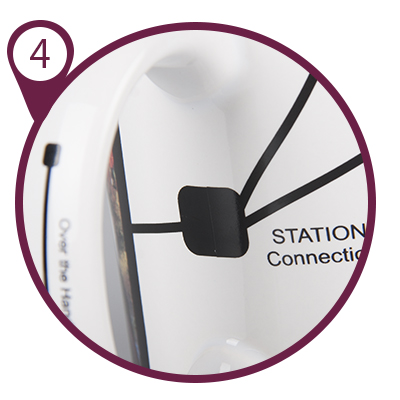

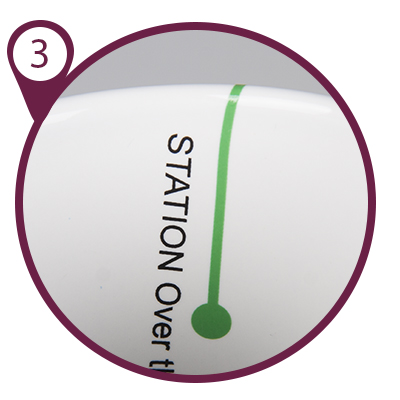

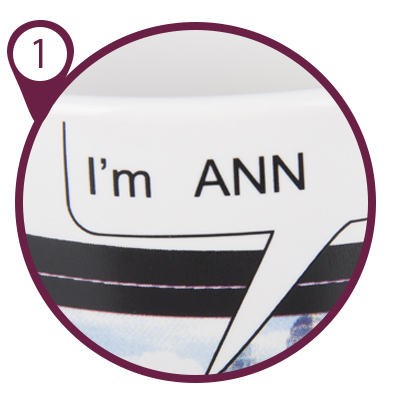

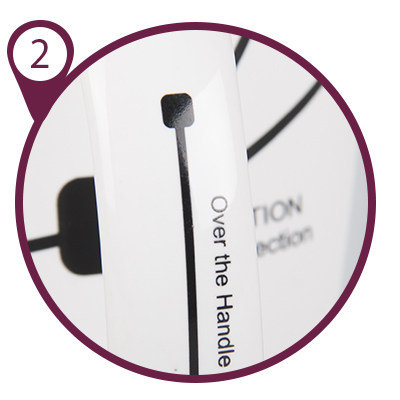

Personalization Print on the handle Print over the rim Print passing under the handle

podgląd_img podgląd_img podgląd_img podgląd_img

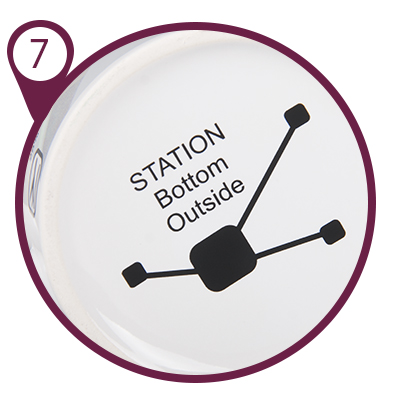

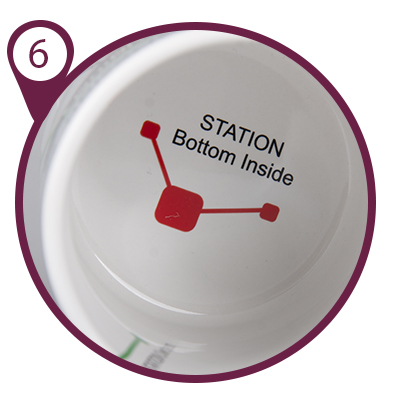

Print on the inside Print on the bottom inside Print on the bottom outside

Reverse printing minimum:
a. line thickness: 0,4 mm
b. font: Arial, 10 points

podgląd_img

podgląd_img
podgląd_img
podgląd_img
Standard printing minimum:
a. line thickness: 0,2 mm
b. font: Arial, 7 points

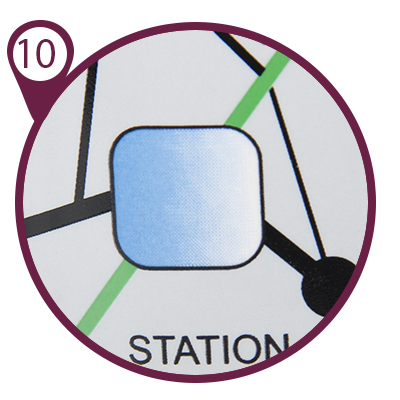

Gradient example:
blue and white

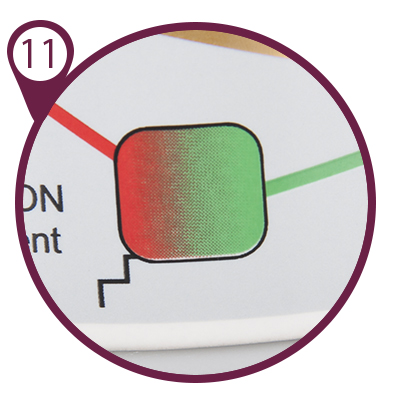

Gradient example:
red-green

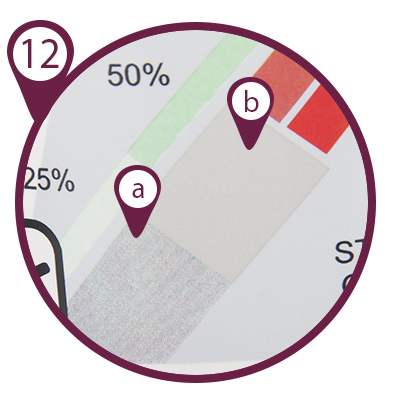

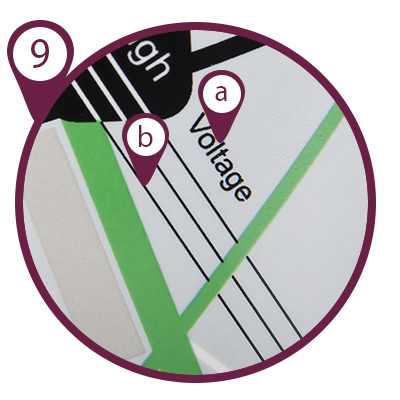

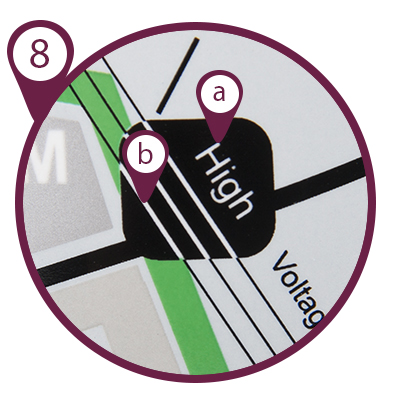

Black printing color comparison:
a. CMYK
b. Pantone

 podgląd_img  podgląd_img  podgląd_img  podgląd_img

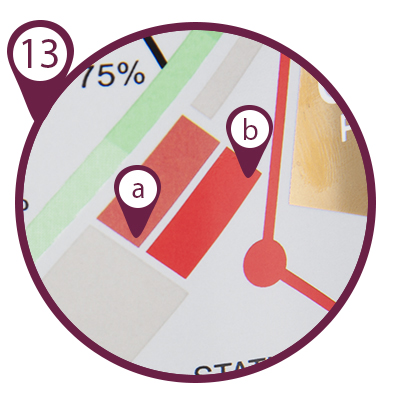

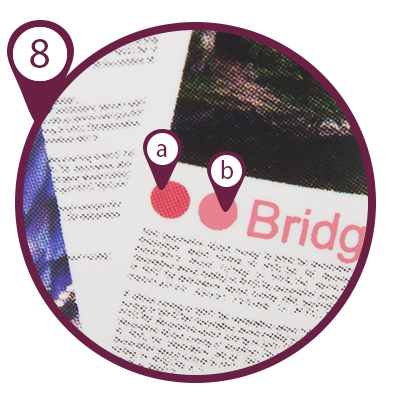

Red printing color comparison:
a. CMYK
b. Pantone

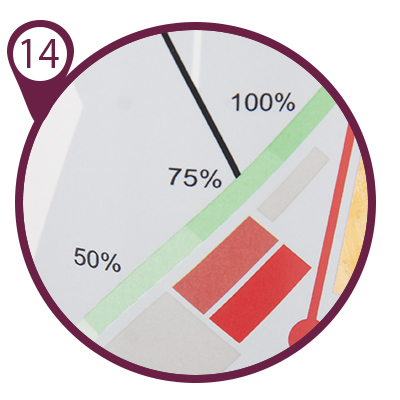

Rastering example:
green line
with  percentage
color
saturation

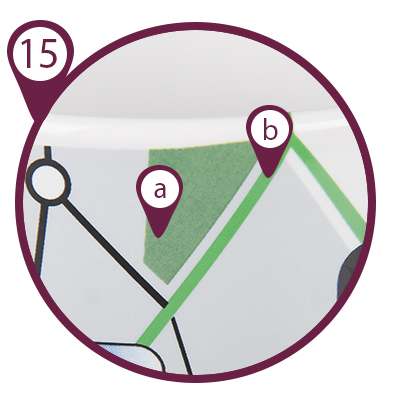

Green printing color comparison:
a. CMYK
b. Pantone
CMYK print
podgląd_img
podgląd_img

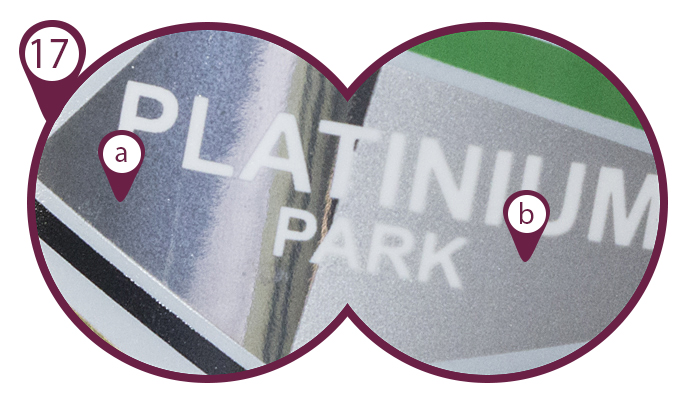

Print comparison:
a. silver
b. silver imitation

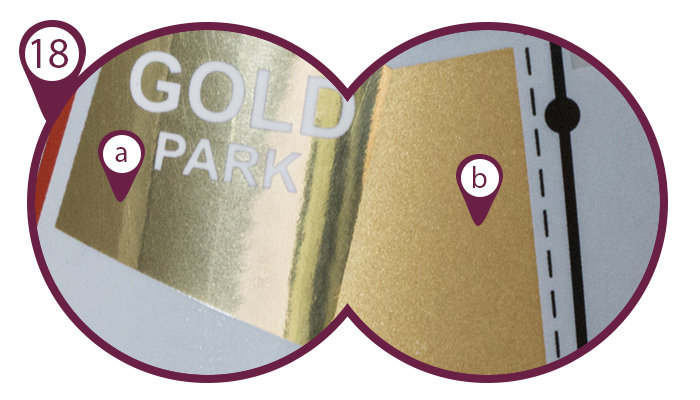

Print comparison:
a. gold
b. gold imitation

podgląd_img podgląd_img
Chalkboard print Matt transfer printing

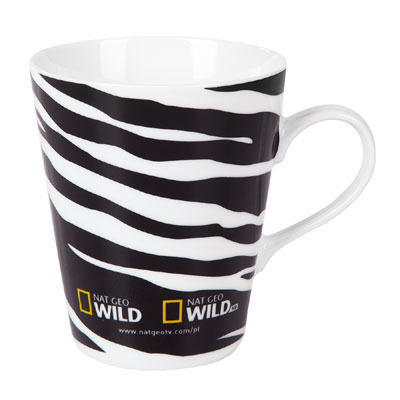

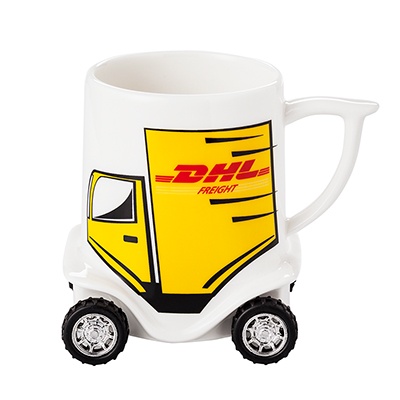

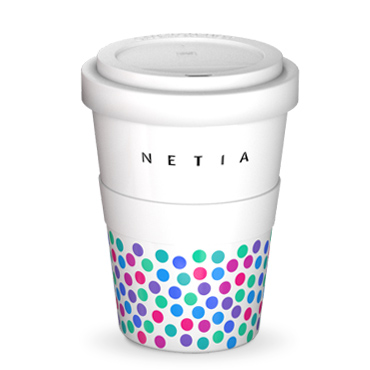

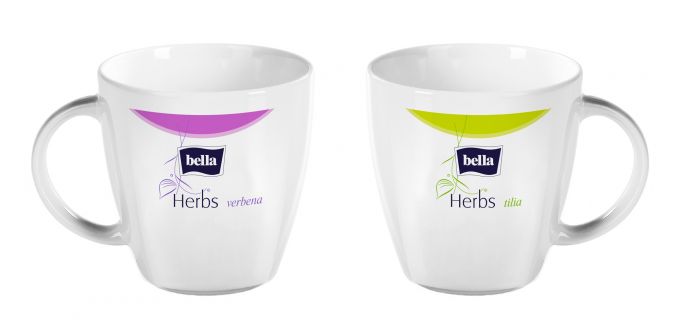

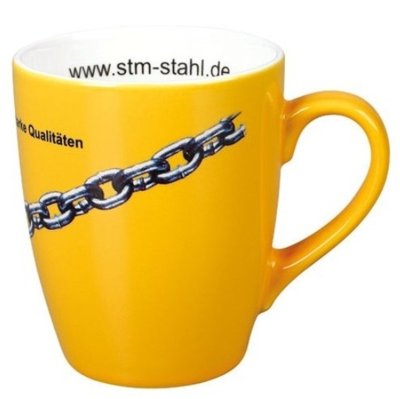

Transfer printing examples:

podgląd_img podgląd_img podgląd_img podgląd_img



___  TRANSFER PRINT ON GLASS

TRANSFER PRINT - ON GLASS
Technological advantages Technological limitations ​​Phases of the technological process
  • • extensive advertising surface
    • personalization capability
    • printed design durable against being washed out in dishwasher - the washing resistance is 250 cycles in a dishwasher. The paints used gradually lose their gloss, however, the print remains permanent, indelible and the printed colors do not discolour.
  • • minimal line thickness is 0,2 mm, in reverse - 0,4 mm
    • minimal size of writing is 7 pt., in reverse - 10 pt.
  • • pattern's preparation for printing
    • printing process on paper
    • transfer on product
    • firing product



___  ORGANIC TRANSFER PRINT  - XPRESSION

Organic transfer print technology (Xpression) enables to achieve high quality, vivid imprints in any Pantone color. From now on even colors such as pink, green, magenta and purple are achievable.

Refer Pantone Color Chart

Endless possibilities

Xpression technology is very versatile. It can be mixed with every other imprint technology. Organic transfer print is suitable for surfaces coated with Hydrocolor. Of course all of our inks are certificated and are safe to come in contact with food.

Termo Ink

Termo Ink technology is a unique variant of Organic Transfer Print. Due to a layer of special paint, some part of an overprint may become invisible until hot drink is poured to the mug. Such a solution enables to create extremely original promotional mugs.





Xpression – imprints in any Pantone color
Technological advantages Technological limitations Phases of the technological process
  • Imprint retains its properties and colors for at least 300 wash cycles in dishwashers
  • Pantone color matching,
  • suitable for surfaces coated with Hydrocolor,
  • orders starting from 24 pieces,
  • low cost.
  • limited resistance to mechanical damage
  • visible, transparent outline around imprint.
  • preparation for printing,
  • printing process on paper,
  • transfer on product,
  • firing product (200 °C).

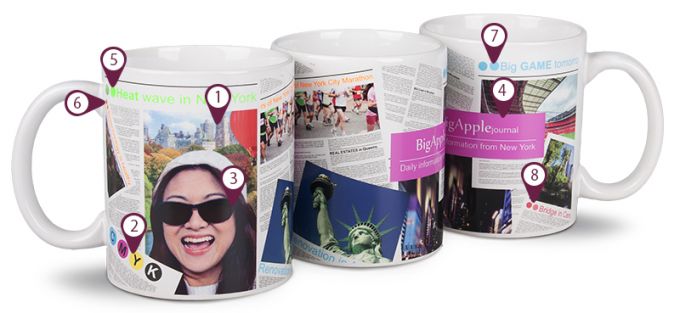

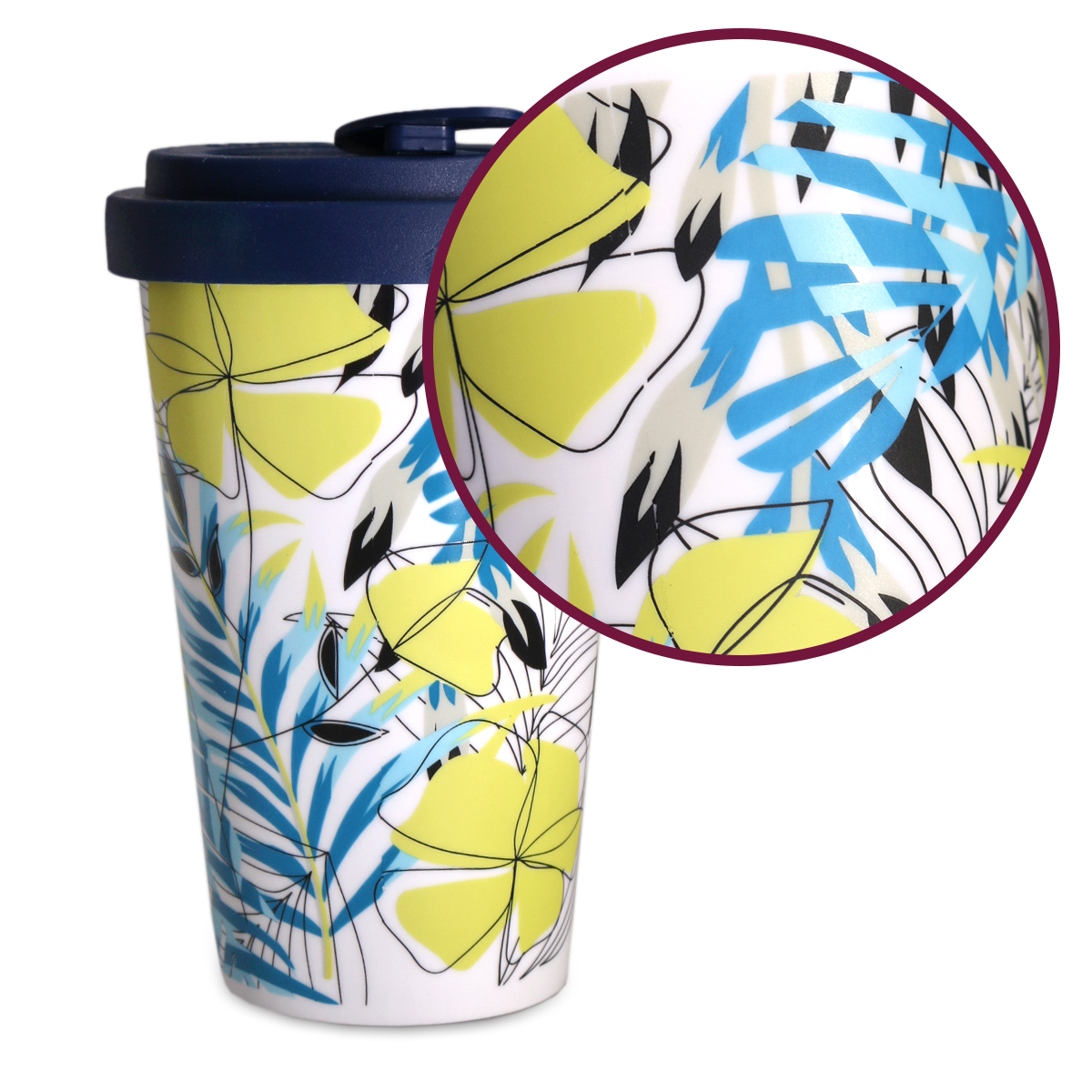

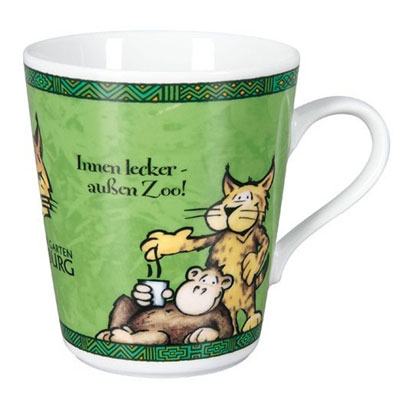

 Examples of organic transfer print:

 GAZETA

podgląd_img podgląd_img podgląd_img podgląd_img

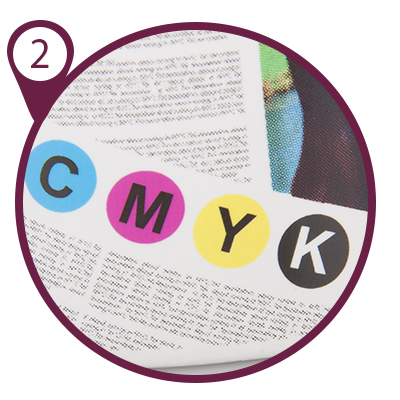

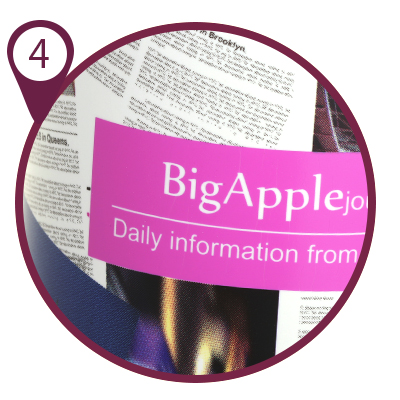

CMYK Print Colors used for CMYK print
Termo Ink print:
print appears when heated
after pouring hot liquid into the mug.

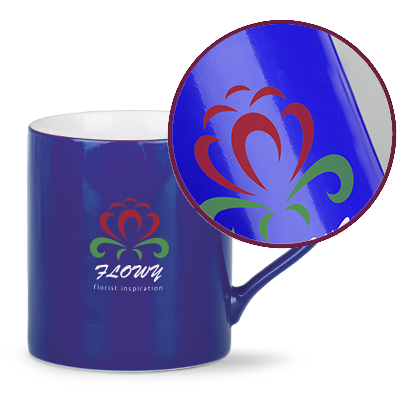

Intense colors
of Xpression print

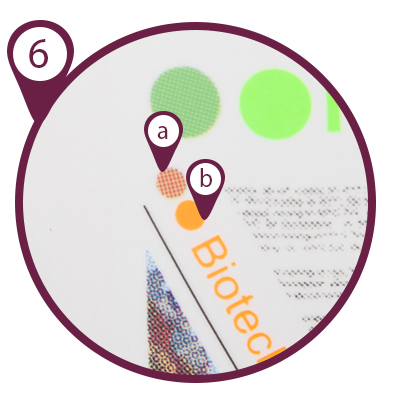

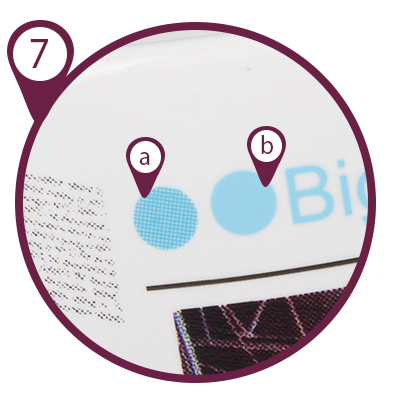

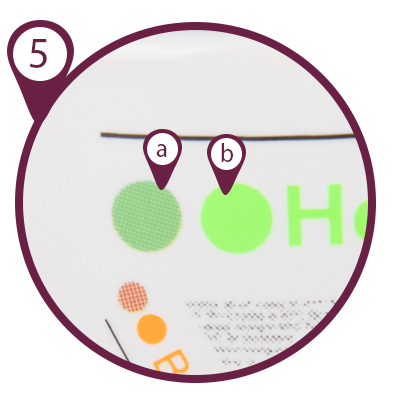

Comparison of colors achieved with CMYK (a) and Pantone (b) prints:

podgląd_img podgląd_img podgląd_img podgląd_img
Green Orange Blue Red
podgląd_img
Xpression with HYDROCOLOR

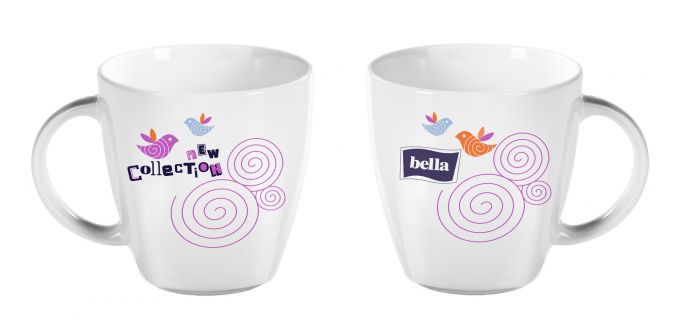

Print examples:

podgląd_img podgląd_img podgląd_img
